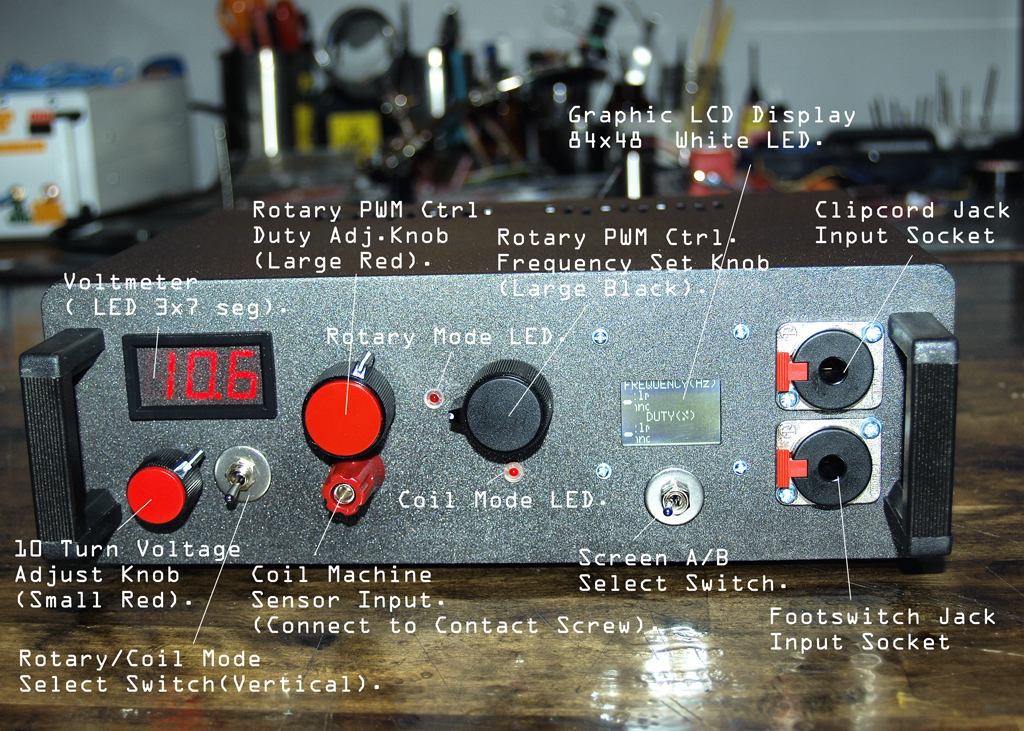

A custom ,hand-made piece of electronic's Art .
A specialised tattoo machine power supply.
With some extra added features and qualities.
Quality of Parts & Build.
-Continuous & laborious testing and improving before release.
-Swiss-Made Neutrik Auto-Lock 16A Jack Sockets,
used for Clipcord & Footswitch connecting.
-The Main Power Supply Core is a MeanWell 45 Watt ,
15VDC/3A,Switching Power Supply Unit.(Fuse 4A )
-Mains AC gets pre-filtered By a Swiss-Made Schaffner EMI Filter 3A.
- 10x Resettable 3A Circuit-Breaker
(Must be by-passed ,if unit is powered by DC voltage 127-370 VDC).
-Radiohm Top -Quality 10A Switching Regulator Storage Coil.
Wrapped in a thick Powdered Ferrite Toroid Core.
Epoxy Insulated-Magnetic Isolated.
Just burn it ....If you can !!!
No more Burned Power Supply Storage Coils From kickback spike currents,
induced by Coil/Rotary Tattooo Machine's collapsing magnetic fields...
-Additional Ripple Current Filtering.
-High Frequency ,105°C Electrolytic Capacitors Used.
-Modular design means 100% replaceable parts.
Features:
- 1.1 up to 15 VDC 3000mA Output.
Noise AC : 7mV ( Vp+ - Vp- @ 50Hz ).
Noise DC/Ripple : 12mV ,@ 52 kHz.
- Pulse Frequency Counter & Pulse Duty Cycle Measuring .
100% digital diagnostics for the 100+ years old coil tattoo machine.
Calibrating and fine tuning .
-Pulse Width Modulation Control of El. Motor.
( 1.1 -15 VDC 3000mA . )
Gain Full control of the rotary Tattoo machine.
Voltage-Pulse Frequency-Duty & Coast Duration .
Transforms every simple rotary tattoo machine into
a multifunctional powerful tattooing device.
Adds a "spring " action on needle sets of Rotary machine.
No power losses ,even at lowest speed settings.
The PWM Control Display Screens:
More about "THE VAMP" ,soon.
